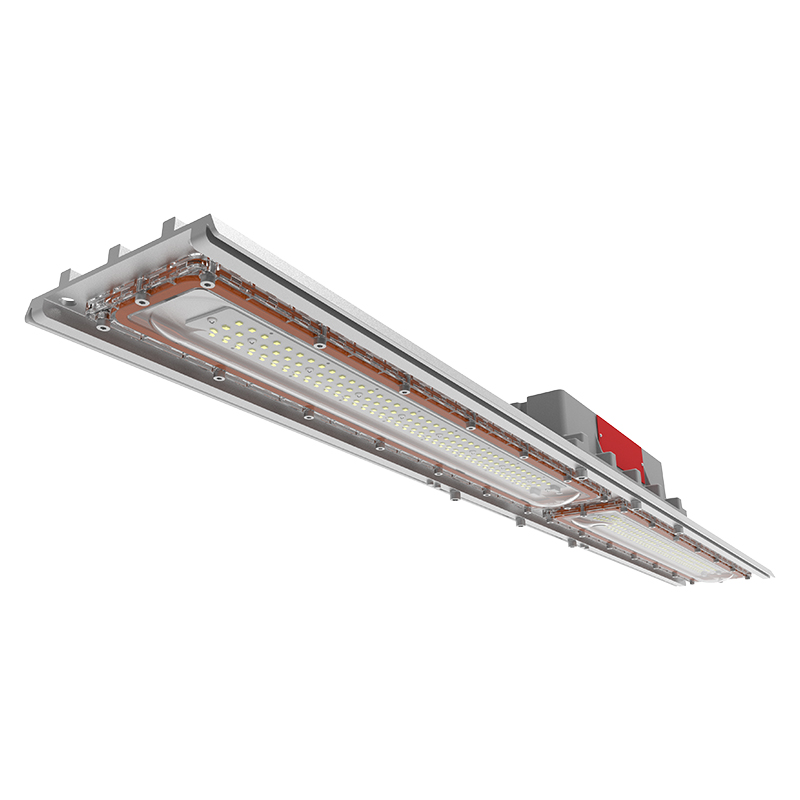

LED Hazardous Location Linear Light UL C1D2 ARROW GHLV

CID2
CIID1
CIID2
CIII

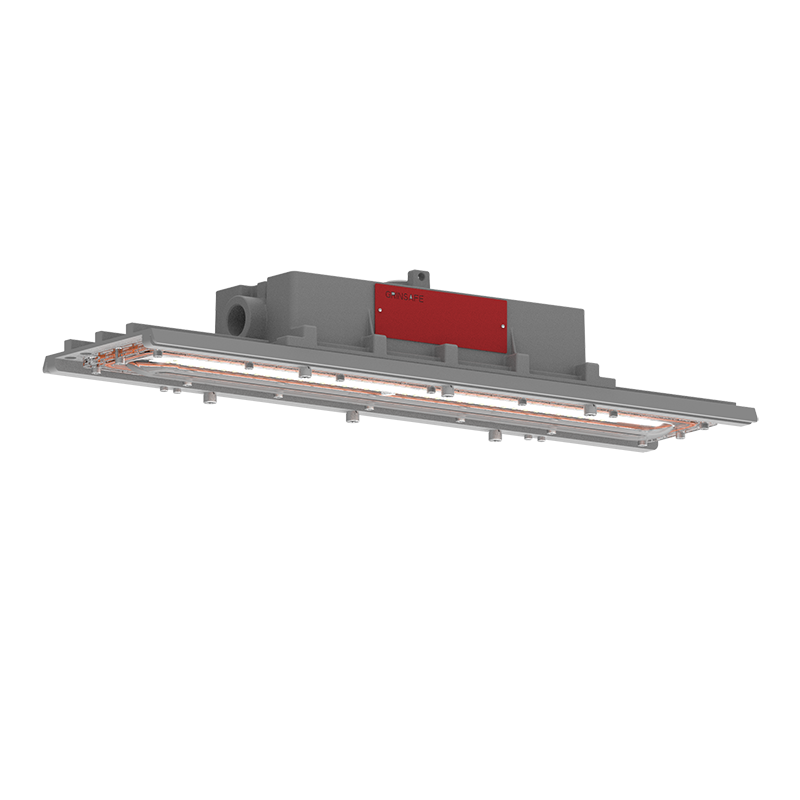

Designed by GRINSAFE, the Arrow series Linear, unique hinge-design of driver housing LED, features the industry’s most versatile and flexiable mounting options. The Arrow is the ideal solution for many hazardous, high vibration, and corrosive environments. Our rugged and durable LED linear portfolio provides options to suit your every need, including lightweight, extreme low profile, and top & side conduit.

Design Features

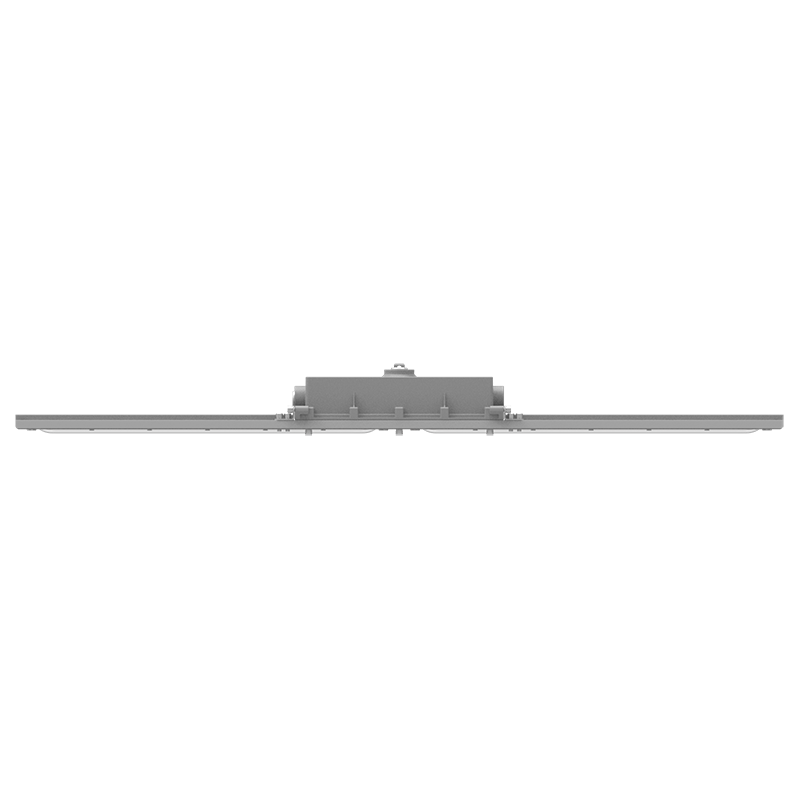

Low Profile and Lighter. 100mm fixture height, perfect for mounting in confined or low height areas.
Rugged Heat Sink. Superior thermal heat sink design provides outstanding performance from –40°C to +70°C wide enough for any environment

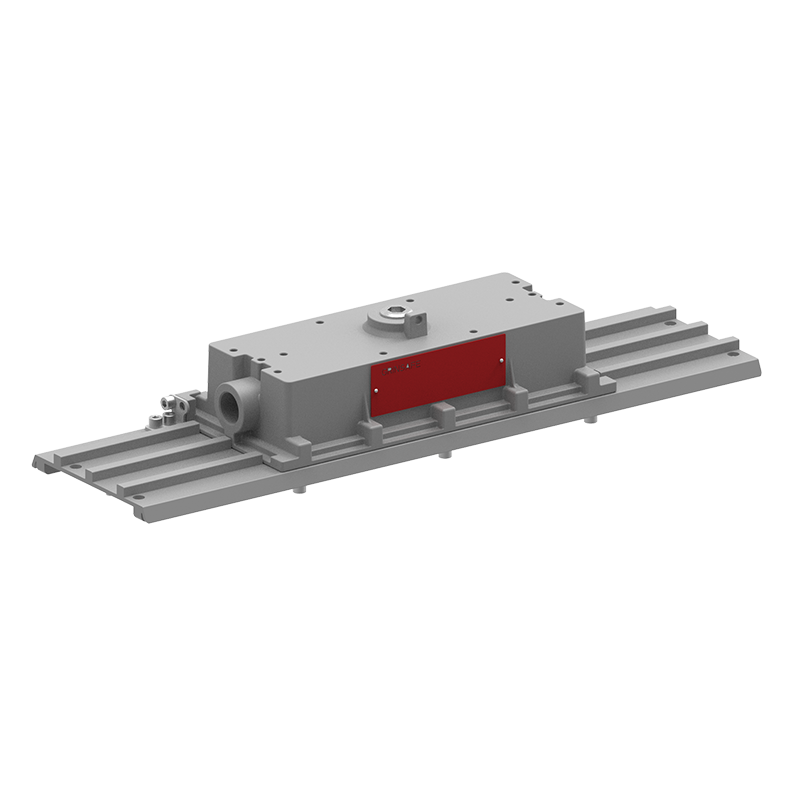

Simple Installation. Clamshell design easy access to drivers and multiple entries standard for easy through wiring.
High Output. 2 models from 5,100 to 13,600 lumens with up to 170Lm/W.
Multiple Beam Angles. 30°, 60°, 90°, 110°, T2, T3, T4, different lens provide more choices for various scenarios.

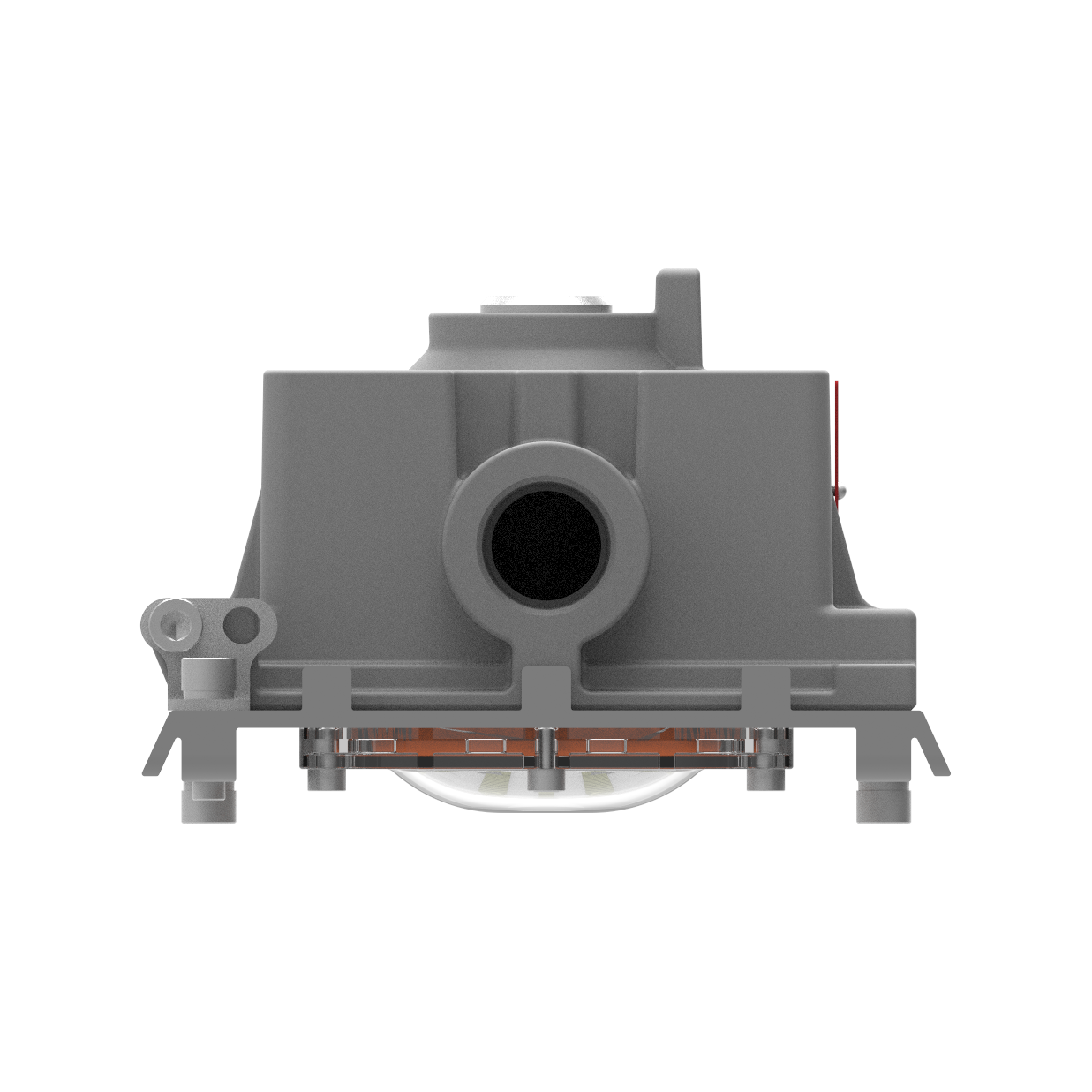

Terminal blocks fitted as standard for faster installation

Part Number Builder

Datasheet

Technical Data

Product Series	GHLV
Rated Power	30W / 40W / 45W / 60W / 80W
Input Voltage	AC100-277V, 347-480V
Input Frequency	50/60Hz
Driver Efficiency	≥ 90%
Emergency Power	8W
Emergency Lumen Output	≥ 1,360lm
Rated autonomy	≥ 90 mins
Lumen Output	5,100lm ~ 13,600lm
Luminous Efficacy	170Lm/W
Beam Angle	30° / 60° / 90° / 110° / T2 / T3 / T4
CCT	Amber / 2700k / 3000K / 4000K / 5000K
CRI	Ra>70
Operating Temperature	-40°C~+70°C 0°C ~ +50°C (EMB)
Lens Material	Polycarbonate
Mounting Options	Pendant / Ceiling / Wall / Hanging / Stanchion / U-Bracket
Cable Entries	3/4”NPT, 1-1/4”NPT, 1-1/2”NPT
Net Weight	3.2kg (2 Ft) / 5 kg (4 Ft) / 7.3 kg (EMB)

Mounting Options

Pendant Mount

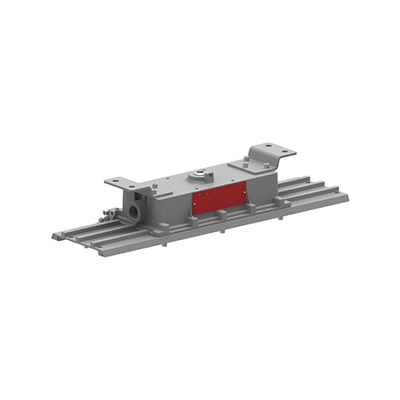

Ceiling Mount

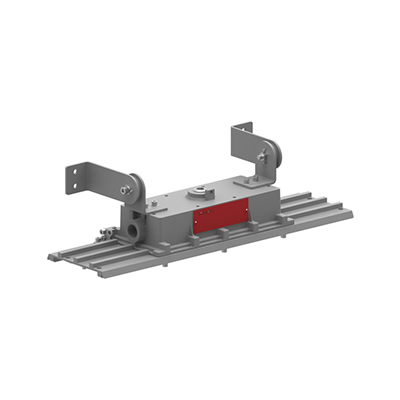

Wall Swivel Bracket Mount

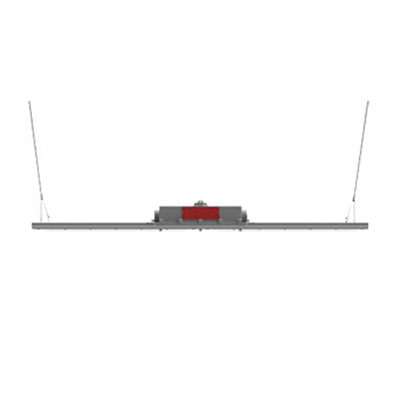

Hanging Mount

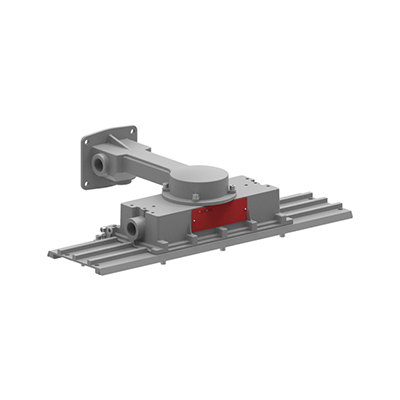

Wall mount 90°

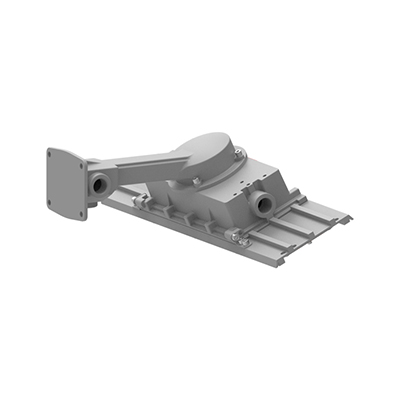

Wall mount 25°

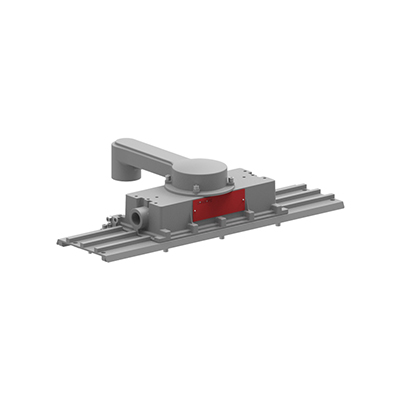

Stanchion mount 90°

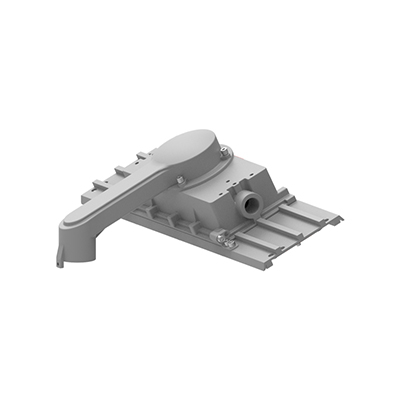

Stanchion mount 25°

Document Type	File Name	Updated	Download
Specifications	GHLV_Arrow_Series_LED_Hazardous_Location_Linear_Light_UL_C1D2_Data_Sheet_EN240227.pdf	2024-03-05	Download
Brochure	GRINSAFE-ARROW-GHLV-LED-Hazardous-Location-Linear-Light-Brochure.pdf	2023-11-27	Download

Certifications & compliances

NEC/CEC Standard
UL 844 Hazardous Locations
Class I Division 2, Group A, B, C, D
Class II Division 1, Group E, F, G
Class II Division 2, Group F, G
Class III
Class I, Zone 2, Group IIC
Zone 21, Zone 22

UL 924
UL 1598 Wet Locations
UL 8750 LED Safety
CSA C22.2 NO.137
CSA C22.2 NO.141-15

Additional Features

Universal Voltage: AC120-277, 347-480V (50/60Hz)
High efficacy up to 170lm/W,
Optional self-testing emergency battery backup.
7 different optics: 30° / 60° / 90° / 110° / T2 / T3 / T4
CCT Adjustable (3000K/ 4000K /5000K)
Wildlife Friendly Amber color options
10kV surge protector is standard, 20kV is optional
9 different mounting options
Dimming: Standard 1 – 10VDC
Ambient temperatures -40°C to +70°C (standard model); -20°C to +40°C (emergency battery back-up model)
IP67 / IK09 / 5G / NEMA 4X
Resistant up to 2,000 PSI of hose directed water
Tested 1000hrs salt spray to standard ASTM”B117-11”
Lumen Maintenance 150,000hours @L70
5-year limited system warranty

Standard Materials

Lamp housing, splice box – die cast copper-free aluminum
Finish – baked Powder epoxy/polyester
Lens – heat, shock, impact and UV resistant polycarbonate lens
Gaskets – high temperature resistant silicone
Hardware – stainless steel
Lacquer-free nameplate
