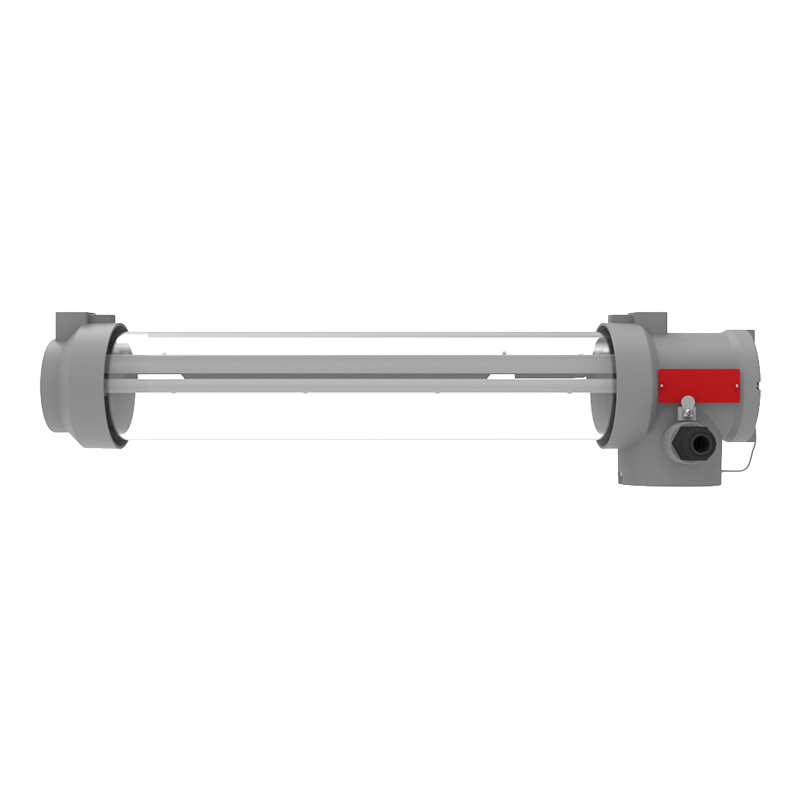

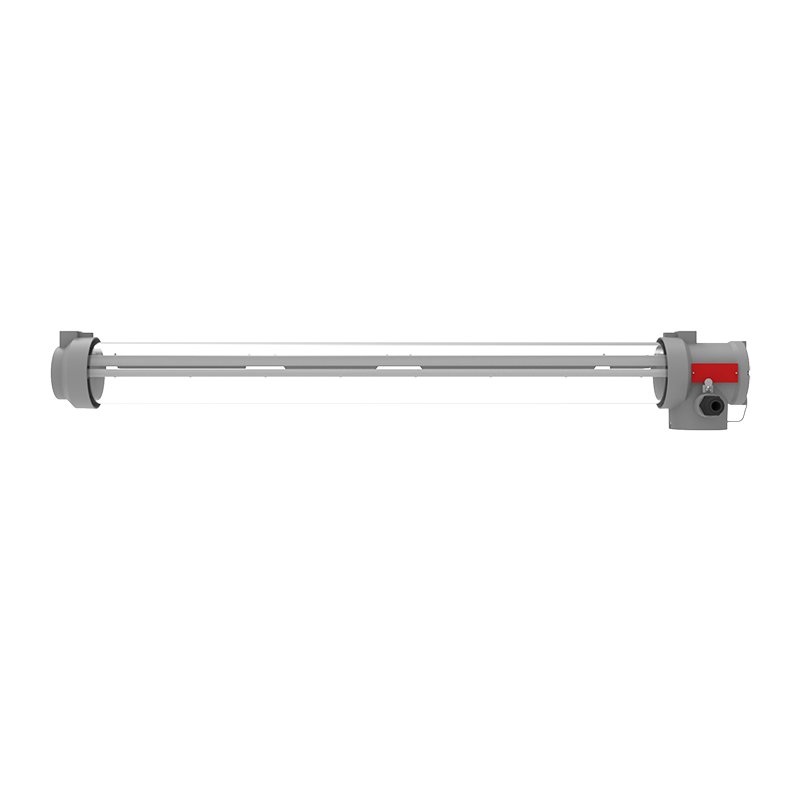

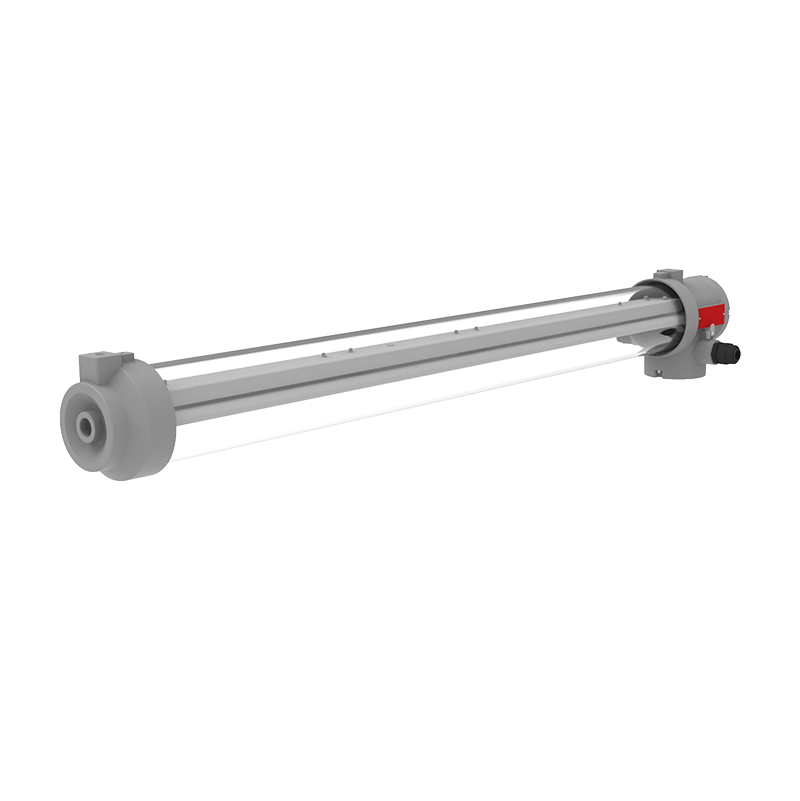

LED Explosion Proof Tubular Light Zone 1 Zone 21 BARREL GELT

  • ZONE 1
  • ZONE 2
  • ZONE 21
  • ZONE 22

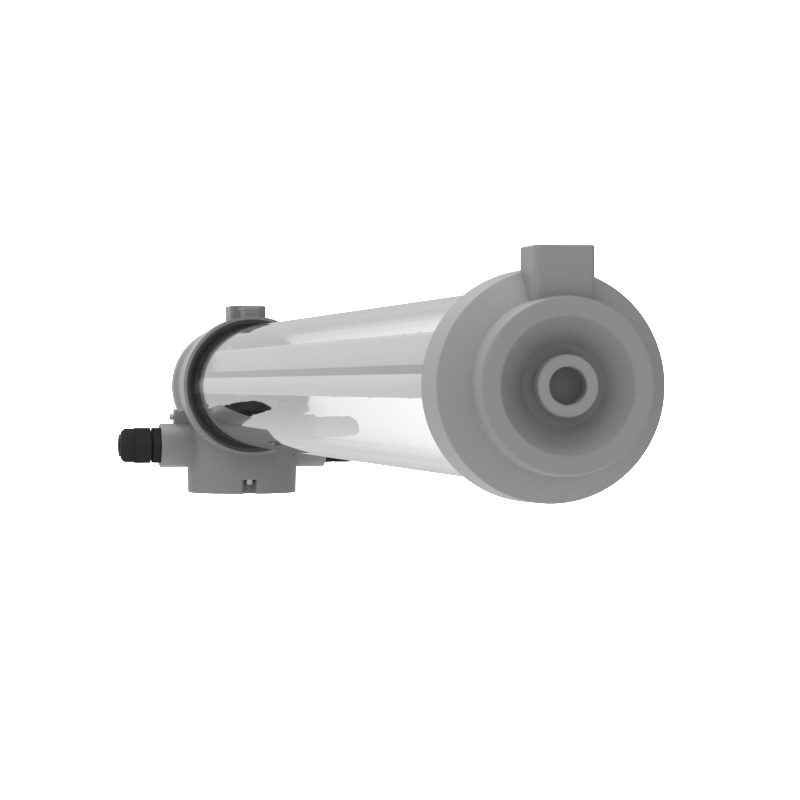

Barrel™ GELT series tubular luminaire with LED tube is designed with the type of protection “Ex d” and “Ex de”. Marine grade copper free aluminium (control gear & lamp body) high-temperature resistant polycarbonate tube ideal solution for many hazardous, high vibration, and corrosive environments.

Design Features

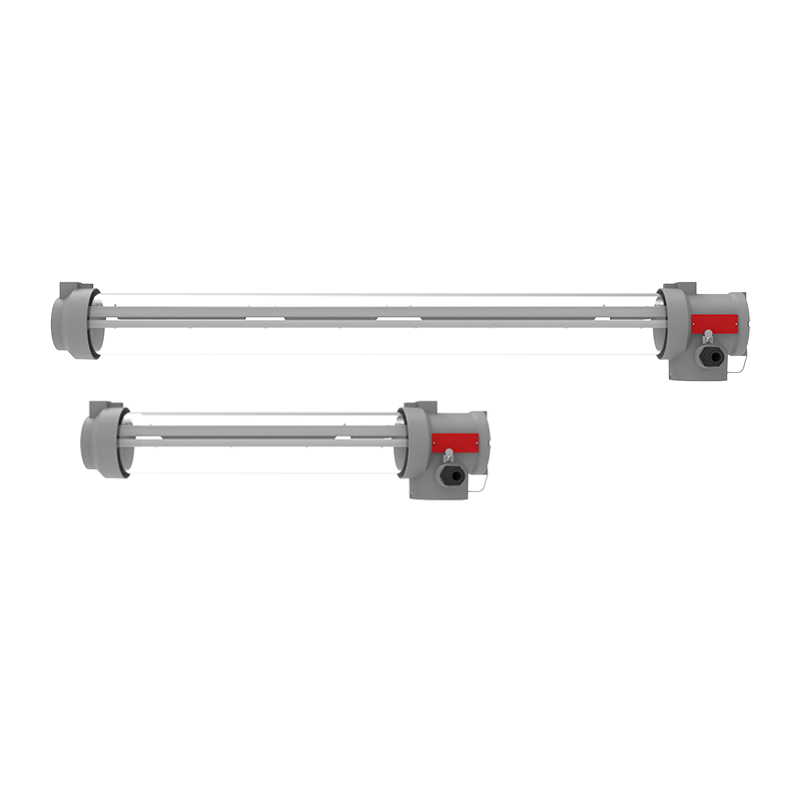

  • Slim profile and lighter. 157mm fixture height and 6 kg(4Ft), 4.5kg(2Ft) fixture weight perfect for mounting in confined or low height areas.

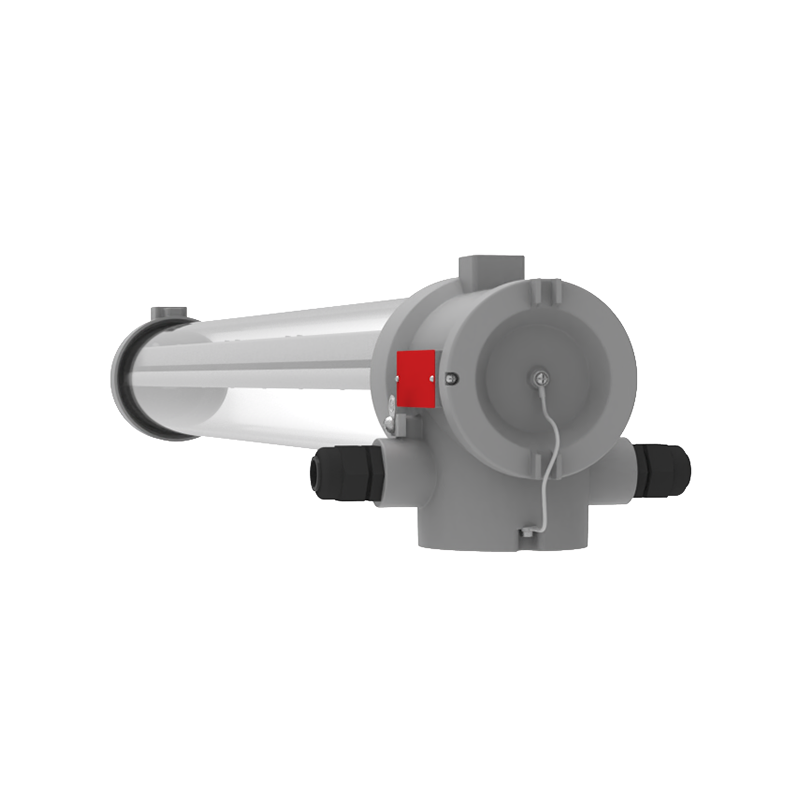

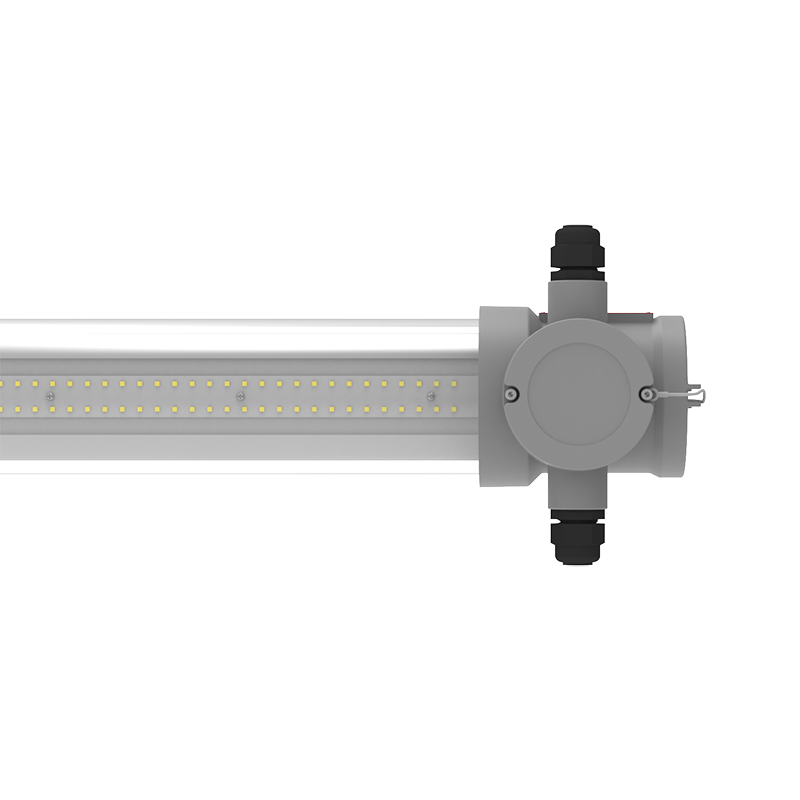

  • Easy installation and wiring. Ex eb compartment provides quick access to terminals.
  • High output. 2 models from 3,200 to 9,600 lumens with up to 160Lm/W.
  • Emergency battery back up. 90 minute minimum run time at 1,600 lumens in emergency mode.
  • Rugged design. Made in UV resistant polycarbonate lK10 for extreme durability.
  • Easy maintenance. Easy access to LED stripe and drivers for quick maintenance.
Part Number Builder

Datasheet

  • Technical Data

  • Mounting Options

  • Downloads

Technical Data

Product Series GELT
Rated Power 20W / 30W / 50W / 60W
Input Voltage AC100-240V
Input Frequency 50/60Hz
Driver Efficiency ≥  90%
Emergency Power 10W
Emergency Lumen Output ≥ 1,600lm
Rated autonomy ≥ 90 mins
Lumen Output 3,200lm ~ 9,600lm
Luminous Efficacy 160Lm/W
Beam Angle 110°
CCT 2700K / 3000K / 4000K / 5000K
CRI Ra>70
Operating Temperature -20°C~+55°C
0°C ~ +50°C (EMB)
Lens Material Polycarbonate
Mounting Options Hanging / Ceiling / Pole
Cable Entries M20, M25, 3/4”NPT
Net Weight 4kg (2 Ft) / 5.6 kg (4 Ft)

Mounting Options

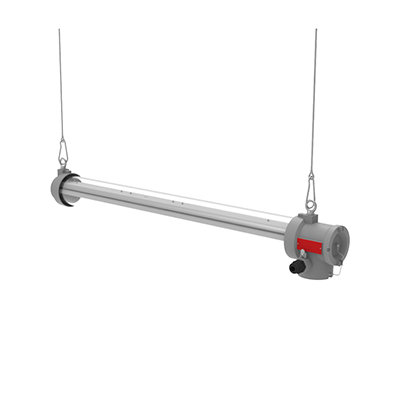

Hanging Mount
Hanging Mount

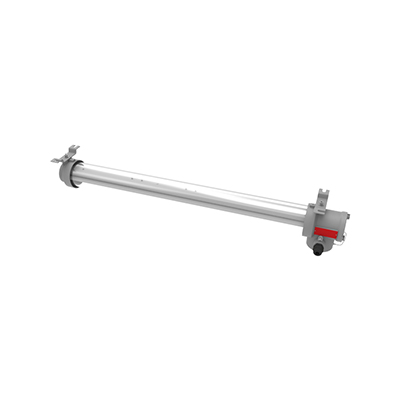

Ceiling Mount
Ceiling Mount

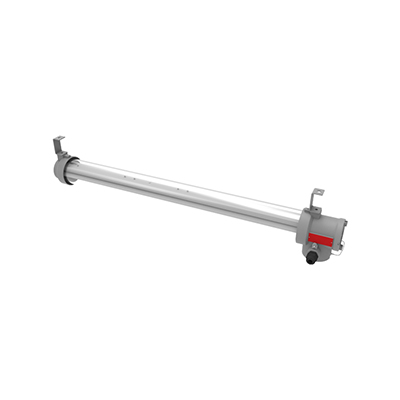

High Ceiling Mount
High Ceiling Mount

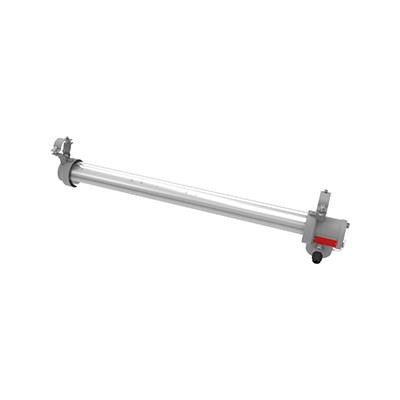

Pole Clamp Mount
Pole Clamp Mount

Document Updated Download
BARREL™ GELT Spec Sheet 2024-10-08
Download
BARREL™ GELT Brochure 2024-10-08
Download

Certifications & compliances

ATEX Standard
II 2G Ex db eb IIC T6 Gb
II 2D Ex tb IIIC T80°C Db

IECEx Standard
Ex db eb IIC T6 Gb
Ex tb IIIC T80°C Db
Zone 1,2 , Zone 21,22
CE EMC/LVD/EMF EN62471

Additional Features

  • Universal Voltage: 100-240V/AC
  • High efficacy up to 160lm/W
  • Optional self-testing emergency battery backup: 90 minute run-time and ≥1,600 lumens
  • 10kV surge protector optional
  • Dimming: Standard 1 – 10VDC
  • Ambient temperatures -20°C to +55°C(standard model); 0°C to +50°C (emergency model)
  • IP67 / IK10 / 5G
  • Resistant up to 2,000 PSI of hose directed water
  • Tested 1000hrs salt spray to standard ASTM”B117-11”
  • Lumen Maintenance 150,000hours @L70
  • 5-year limited system warranty. 5 years for luminaire / 2 year for emergency battery

Standard Materials

  • Lamp housing, Splice box- die cast copper-free aluminum
  • Finish – baked Powder epoxy/polyester
  • Lens – heat, impact, and UV resistant polycarbonate
  • Gaskets – high temperature resistant silicone
  • Hardware – stainless steel
