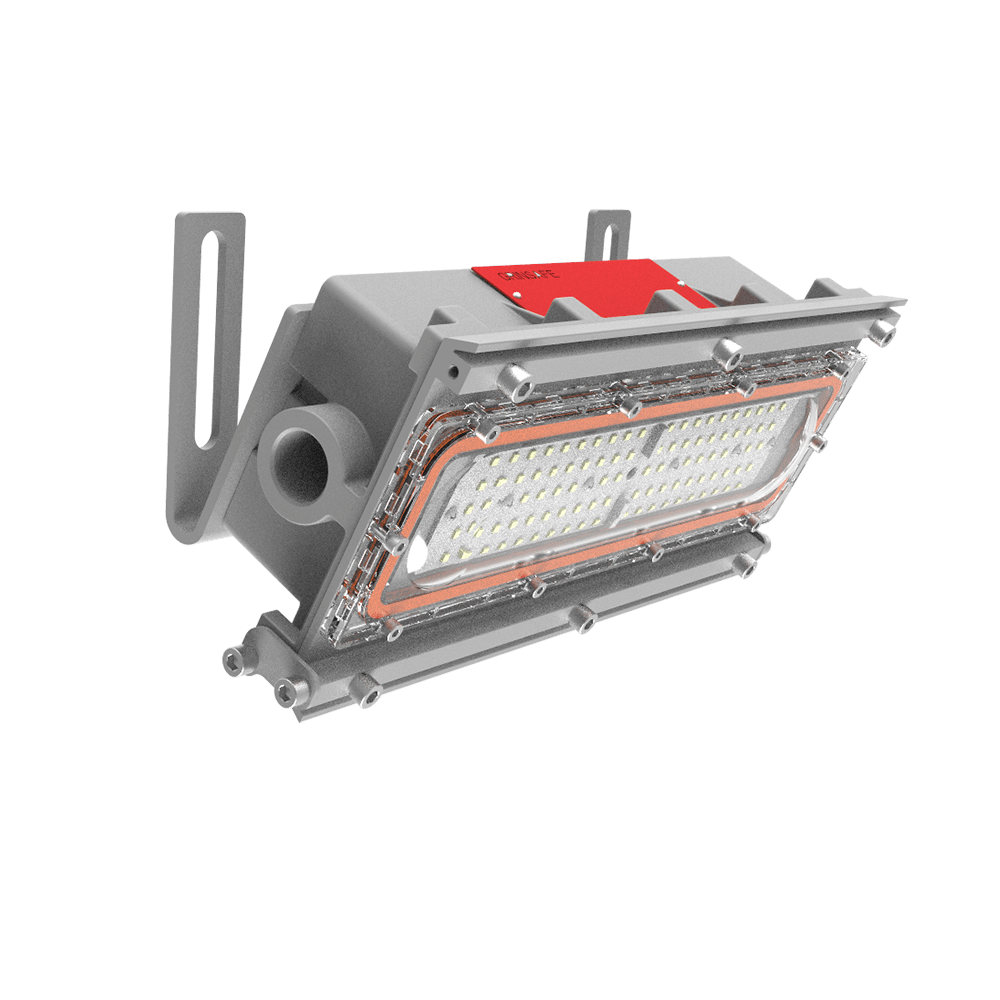

LED Hazardous Location Wall-Pack Light FIREFLY GHW

  • CID2
  • CIID1
  • CIID2
  • CIII

GHW wall pack lighting meet certain requirements to ensure safe operation In hazardous areas . These areas are classified as locations where flammable gases, vapors, or dusts are present in sufficient quantities to create a risk of explosion or fire. Wall pack lighting for use in hazardous areas must therefore be designed to prevent the ignition of these substances.

Design Features

  • Slim Profile and Lighter. Less than 100mm fixture height, perfect for mounting in confined or low height areas.
  • Quick & Easy Installation. Clamshell design easy access to drivers and multiple entries standard for easy through wiring.
  • Rugged Heat Sink. Superior thermal heat sink design provides cool operation from –40°C to +65°C (–40°F to +149°F) wide enough for any environment
  • High Efficiency. Delivers up to 165 lm/W, reducing energy costs by up to 75% over conventional lamps.
  • Impact resistant PC Lens. Vibration, impact and shock resistant.
  • Terminal blocks fitted as standard for faster installation
Part Number Builder

Datasheet

  • Technical Data

  • Mounting Options

  • Downloads

Technical Data

Product Series GHW
Rated Power 20W / 30W
Input Voltage AC100-277V
Input Frequency 50/60Hz
Driver Efficiency ≥  90%
Lumen Output 3,300lm / 4,950lm
Luminous Efficacy 165Lm/W
Beam Angle 110°
CCT Amber / 2700K / 3000K / 4000K / 5000K
CRI Ra>70
Operating Temperature -40°C~+65°C
Lens Material Polycarbonate
Mounting Options Wall mount
Cable Entries 3/4”NPT
Net Weight 2.3kg

Mounting Options

Wall mount
Wall mount

Ceiling mount
Ceiling mount

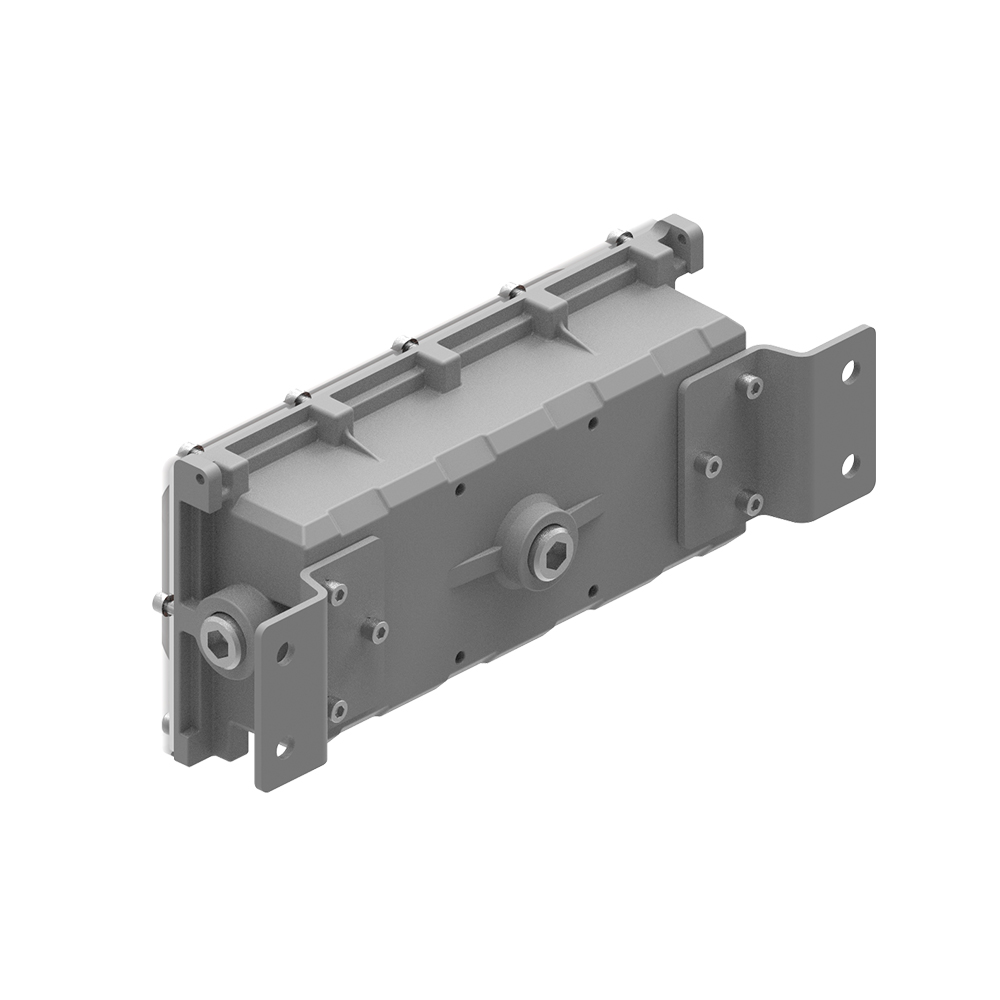

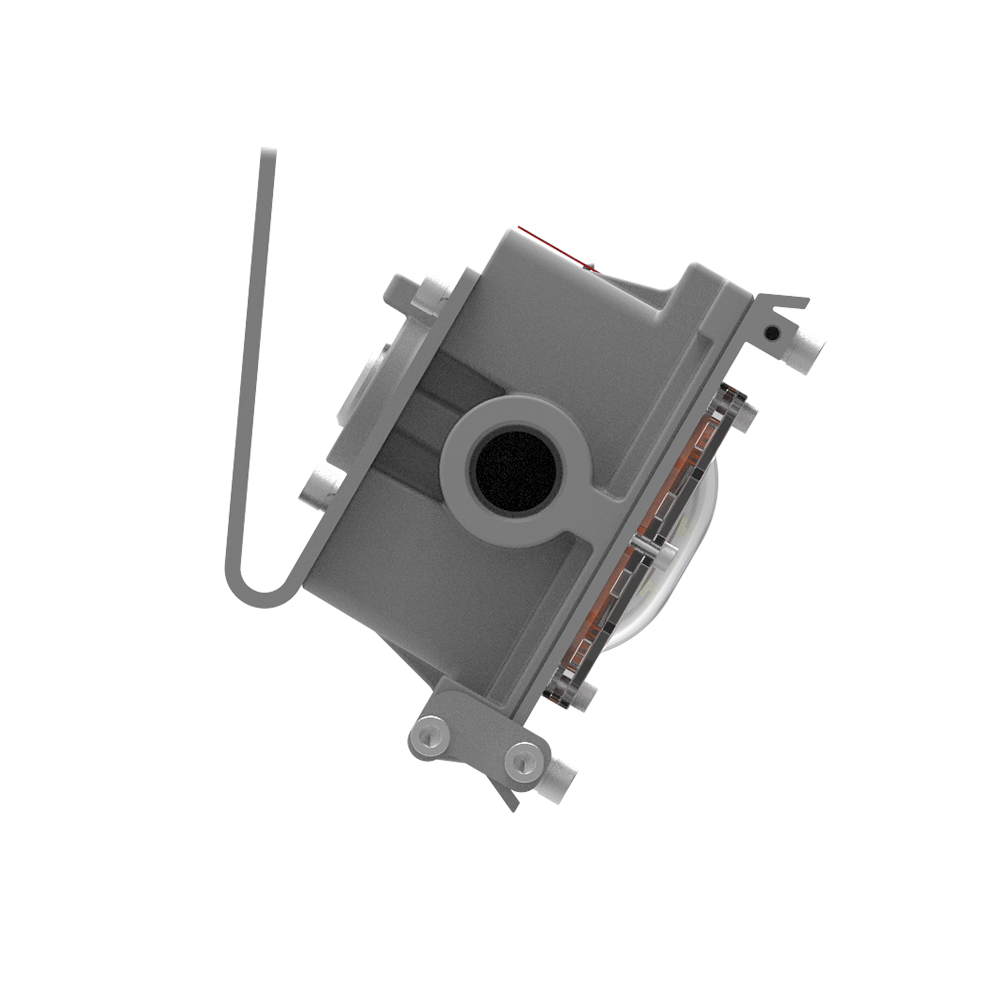

Wall swivel bracket
Wall swivel bracket

Pole clamp mount
Pole clamp mount

Document Updated Download
Firefly™ GHW Spec Sheet 2024-10-08
Download
Firefly™ GHW Brochure 2024-10-08
Download

Certifications & compliances

NEC/CEC Standard
UL 844 Hazardous Locations
Class I Division 2, Group A, B, C, D
Class II Division 1, Group E, F, G
Class II Division 2, Group F, G
Class III
Class I, Zone 2, Group IIC
Zone 21
Zone 22

UL 1598 Wet Locations
UL 1598A Marine Outside Type (Salt Water)
UL 8750 LED Safety
CSA C22.2 NO.137-M1981
CSA C22.2 NO. 250.0

Additional Features

  • Universal Voltage: AC120-277V (50/60Hz)
  • High efficacy up to 165lm/W,
  • CCT Adjustable (3000K/ 4000K /5000K)
  • Wildlife Friendly Amber color options
  • 10kV surge protector is standard, 20kV is optional
  • Dimming: Standard 1 – 10VDC
  • Ambient temperatures -40°C to +65°C
  • IP67 / IK09 / 5G / NEMA 4X
  • Resistant up to 2,000 PSI of hose directed water
  • Tested 1000hrs salt spray to standard ASTM”B117-11”
  • Lumen Maintenance L70>150,000hours @ 25°C
  • 5-year limited system warranty

Standard Materials

  • Lamp housing, Splice box, and adapter – die cast copper-free aluminum
  • Finish – baked Powder epoxy/polyester
  • Lens – heat, shock, impact and UV resistant polycarbonate lens
  • Gaskets – high temperature resistant silicone
  • Hardware – stainless steel
  • Lacquer-free nameplate
