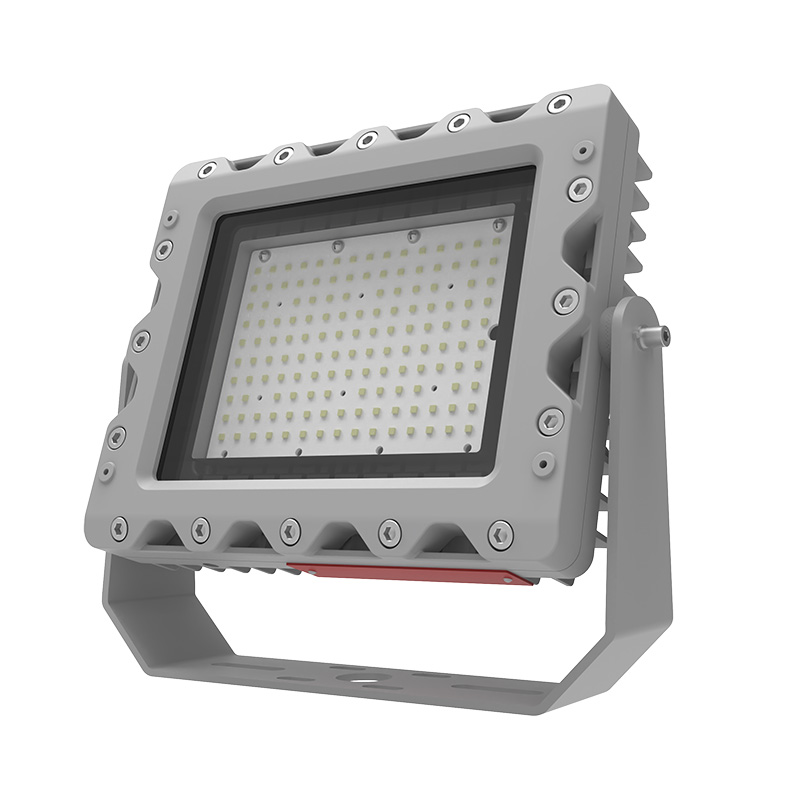

Compact Design Explosion Proof Flood Light UL C1D1 FLINT GHSM

  • CID1
  • CID2
  • CIID1
  • CIID2
  • CIII

The FLINT™ series LED explosion proof flood lights withstand the most hazardous conditions and offers superior safety and duribility for petro-chemical, oil and gas (including offshore), mining, metal processing and other environments with flammable and ignitable elements. Extreme light weight, most robust structure and universal accessaries for easy-installion are the very reasons that contractors love.

Design Features

  • Lightweight And Compact. Low profile & lightweight with single chamber design. 129mm height is perfect for confined or low height areas.
  • High Efficiency. Delivers up to 160 lm/W, utilizes special-treated glass for extreme application, providing high efficacy and long life.
  • Multiple Beam Angles. 30°, 60°, 90°, 110°, T2, T3, T4, different lens provide more choices for various scenarios.
  • Retrofit Friendly. Universal mounting accessories minimizes the SKUs and maximizes the flexibility.
  • Build To Last. Copper-free aluminum housing and impact resistant lens sealed from the outside environment provides ingress protection against water and dust.
Part Number Builder

Datasheet

  • Technical Data

  • Mounting Options

  • Downloads

Technical Data

Product Series GHSM
Rated Power 20W / 40W / 60W
Input Voltage AC100-277V, 347-480V
Input Frequency 50/60Hz
Driver Efficiency ≥  90%
Lumen Output 3,200lm ~ 9,600lm
Luminous Efficacy 160Lm/W
Beam Angle 30°/60°/90°/110°/T2/T3/T4
CCT Amber / 2700K / 3000K / 4000K / 5000K
CRI Ra>70
Operating Temperature -40°C~+65°C
Lens Material Glass
Mounting Options Pendant / Ceiling / Wall mount / Stanchion / U-Bracket
Cable Entries 3/4”NPT, 1-1/4”NPT, 1-1/2”NPT
Net Weight 6.3kg

Mounting Options

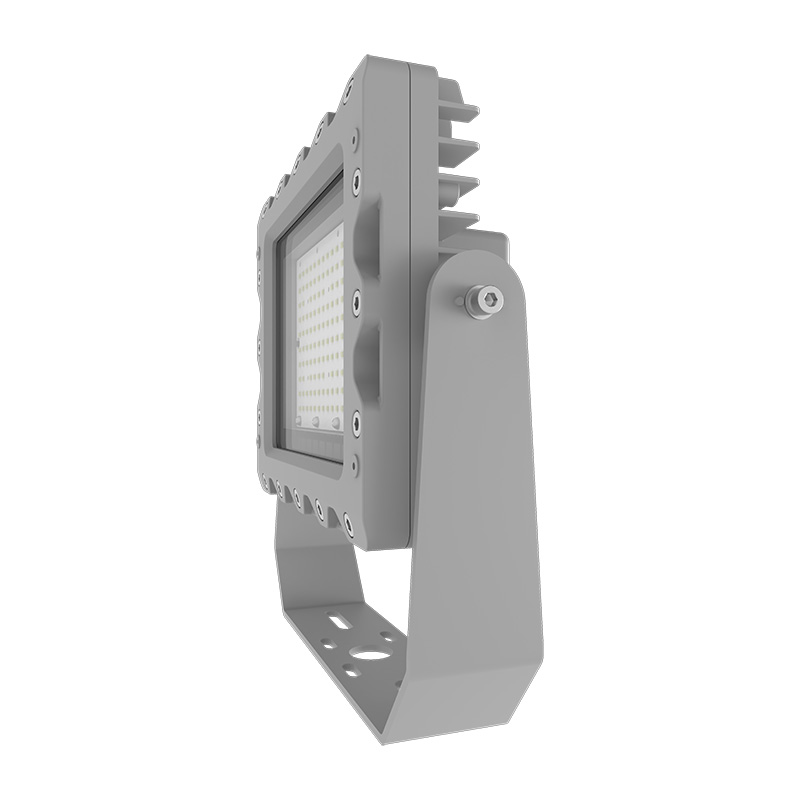

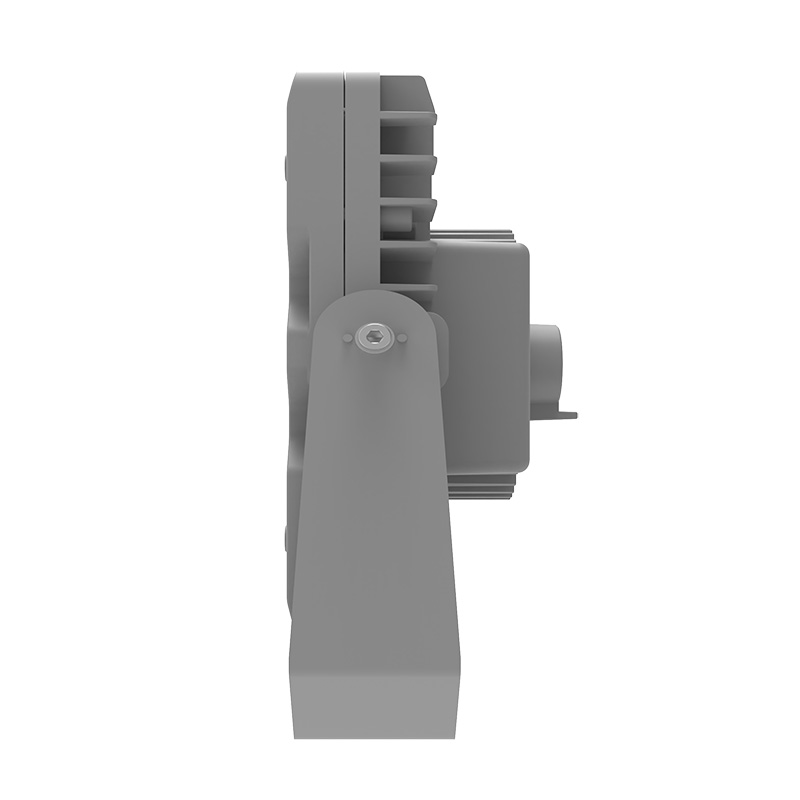

U-Bracket
U-Bracket

Document Updated Download
Flint™ GHSM Spec Sheet 2024-10-08
Download
Flint™ GHSM Brochure 2024-10-08
Download

Certifications & compliances

NEC/CEC Standard
UL 844 Hazardous Locations
Class I Division 1, Group B, C, D
Class I Division 2, Group A, B, C, D
Class II Division 1, Group E，F, G
Class II Division 2, Group F, G
Class III
Class I, Zone 1, Group IIB+H2
Class I, Zone 2, Group IIC
Zone 21, Zone 22

UL 1598 Wet Locations
UL 1598A Marine Outside Type (Salt Water)
UL 8750 LED Safety
CSA C22.2 No.137-M1981
CSA C22.2 NO. 250.0

Additional Features

  • Universal Voltage: AC120-277, 347-480V (50/60Hz)
  • High efficacy 160 lm/W,
  • 7 different optics: 30° / 60° / 90° / 110° / T2 / T3 / T4
  • 10kV surge protector is standard, 20kV is optional
  • Dimming: Standard 1 – 10VDC
  • Offering a T-rating of T6 , Ambient temperatures -40°C to +65°C
  • IP67 / IK09 / 5G / NEMA 4X
  • Tested 1000hrs salt spray to standard ASTM”B117-11”
  • Lumen Maintenance L70>150,000hours @25°C
  • 5-year limited system warranty

Standard Materials

  • Lamp housing, heat sink and adapter – die cast aluminum
  • Finish – Baked Powder epoxy/polyester
  • Lens – heat, shock and impact resistant glass lens
  • Gaskets – high temperature resistant silicone
  • Hardware – stainless steel
  • Lacquer-free Nameplate

PART NUMBER BUILDER

Power
Voltage
Ex. Level
Optics
Color Temperature
Lens
Mount Style
Color
Accessories
