LED Hazardous Location Jelly Jar Light UL C1D2 JET GHRS

CID2
CIID1
CIID2
CIII

Jet series LED luminaires are designed to provide durable and energy efficient lighting in various applications. Wide range of certification and integrated structure design enable it to be installed in the environments where flammable vapors, gases, ignitable dusts, fibers or flyings are present. Its vibrant silhouette also can be found in the places where extremely corrosive, wet, dusty, hot and/or cold conditions exist.

Design Features

Easy Installation. Single barrel nut and hinge design, one-hand operation for quick and easy installation
Light Weight & Compact. 196mm in height with maximum 34,000 lumen output fits perfectly for mounting in confined areas.
High Efficiency. Delivers up to 150 lm/W, reducing energy costs.
Retrofit Friendly. Universal mounting accessories minimizes the SKUs and maximizes the flexibility.
Build To Last. Copper-free aluminum housing and impact resistant lens sealed from the outside environment provides ingress protection against water and dust. Terminal blocks fitted as standard for faster installation

Part Number Builder

Datasheet

Technical Data

Product Series	GHRS
Rated Power	10W / 20W / 30W
Input Voltage	AC100-277V
Input Frequency	50/60Hz
Driver Efficiency	≥ 90%
Lumen Output	1,500lm / 3,000lm / 4,500lm
Luminous Efficacy	150Lm/W
Beam Angle	110°
CCT	Amber / 2700k / 3000K / 4000K / 5000K
CRI	Ra>70
Operating Temperature	-40°C~+65°C
Lens Material	Frosted drop lens
Mounting Options	Pendant / Ceiling / Wall mount / Stanchion / U-Bracket
Cable Entries	3/4”NPT, 1”NPT, 1-1/4”NPT, 1-1/2”NPT
Net Weight	2.6kg

Mounting Options

Pendant Mount

Trunnion Bracket

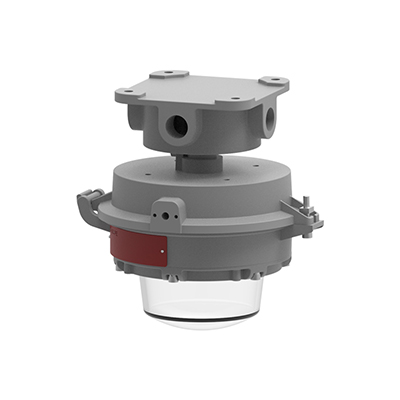

Ceiling Mount

Wall mount 90°

Wall mount 25°

Stanchion mount 90°

Stanchion mount 25°

Document Type	File Name	Updated	Download
Specifications	GHRS_Jet_Series_LED_Hazardous_Location_Light_UL_C1D2_Data_Sheet_EN240227.pdf	2024-03-05	Download
Brochure	GRINSAFE-JET-GHRS-LED-Hazardous-Location-Jelly-Jar-Light-Brochure.pdf	2023-11-27	Download

Certifications & compliances

NEC/CEC Standard
UL 844 Hazardous Locations
Class I Division 1, Group C, D
Class I Division 2, Group A, B, C, D
Class II Division 1, Group E，F, G
Class II Division 2, Group F, G
Class III
Class I, Zone 1, Group IIB
Class I, Zone 2, Group IIC
Zone 21, Zone 22

UL 1598 Wet Locations
UL 1598A Marine Outside Type (Salt Water)
UL 8750 LED Safety
Paint Spray Booth
CSA C22.2 No.137-M1981
CSA C22.2 No. 250.0

Additional Features

Universal Voltage: AC120-277V (50/60Hz)
High efficacy up to 150lm/W
CCT Adjustable (3000K/ 4000K /5000K)
Wildlife Friendly Amber color options
10kV surge protector is standard, 20kV is optional
Dimming: Standard 1 – 10VDC
Ambient temperatures -40°C to +65°C
IP67 / IK09 / 5G / NEMA 4X
Resistant up to 2,000 PSI of hose directed water
Tested 1000hrs salt spray to standard ASTM”B117-11”
Lumen Maintenance 150,000hours @L70
5-year limited system warranty

Standard Materials

Lamp housing, Splice box, and adapter – die cast copper-free aluminum
Finish – baked Powder epoxy/polyester
Lens – heat, shock and impact resistant diffuse glass drop lens
Gaskets – high temperature resistant silicone
Hardware – stainless steel
Lacquer-free nameplate
