LED Hazardous Location Area Light UL C1D2 C2D1 LANCE GHRM

CID2
CIID1
CIID2
CIII

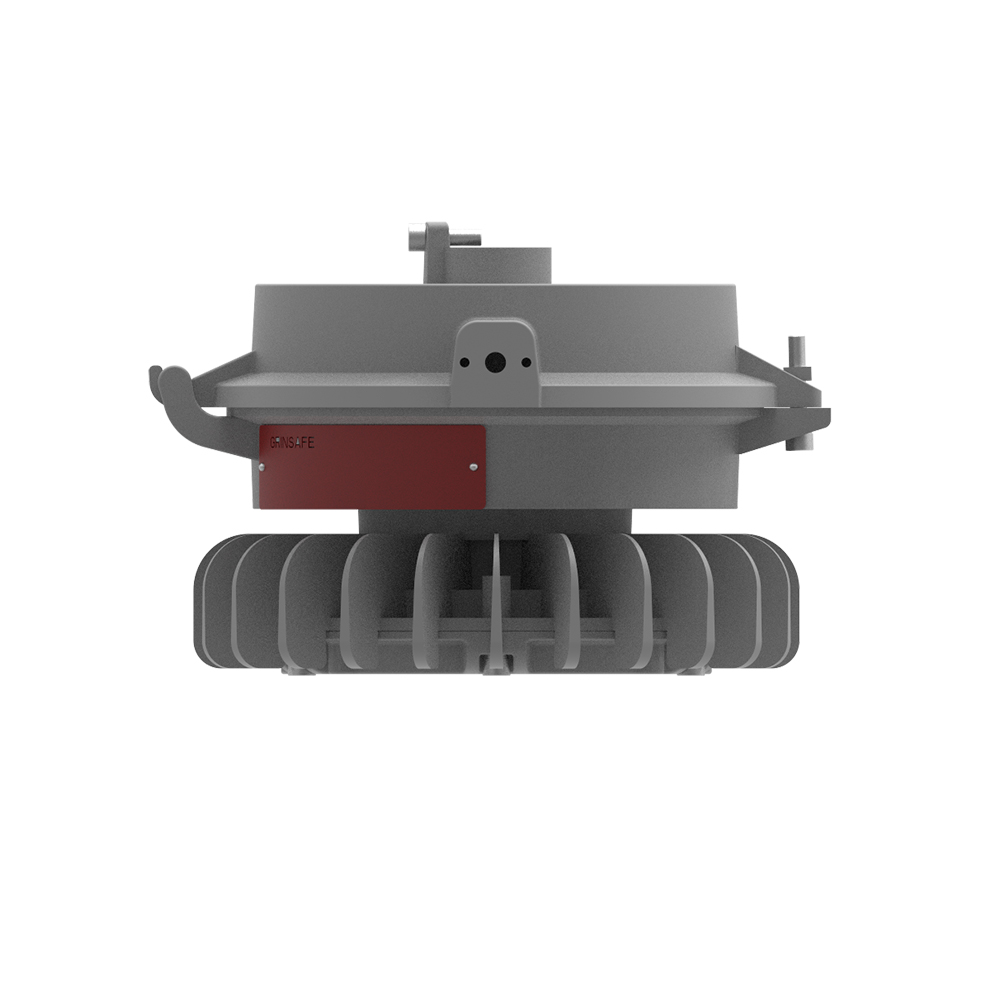

The Lance series is an extremely robust LED area light fixture that has superior performance due to its tempered glass lens and cold-forged pure aluminium body. Its compact housing, well-arranged heat-producing components result in more efficient heat dissipation for cooler, safer and longer fixture operation within the most hazardous areas. Lance™ is lightweight and versatile to fit many applications.

Design Features

Easy Installation. Single barrel nut and hinge design, one-hand operation for quick and easy installation
Lightweight & Compact. 3.5kg fixture weight only, design for low mounting heights and confined spaces.
High Efficacy. Delivers up to 170 lm/W and 10,200 lumen reducing energy costs by up to 75% over conventional lamps.
Retrofit Friendly. Universal mounting accessories minimizes the SKUs and maximizes the flexibility.
Build To Last. Copper-free aluminum housing and impact resistant lens sealed from the outside environment provides ingress protection against water and dust.
Terminal blocks fitted as standard for faster installation

Part Number Builder

Datasheet

Technical Data

Product Series	GHRM
Rated Power	40W / 60W
Input Voltage	AC100-277V, 347-480V
Input Frequency	50/60Hz
Driver Efficiency	≥ 90%
Lumen Output	6,400lm / 9,600lm
Luminous Efficacy	160Lm/W
Beam Angle	T1 / T3 / 110°
CCT	Amber / 2700k / 3000K / 4000K / 5000K
CRI	Ra>70
Operating Temperature	-40°C~+65°C
Lens Material	Glass / PC / Drop lens
Mounting Options	Pendant / Ceiling / Wall mount / Stanchion / U-Bracket
Cable Entries	3/4”NPT, 1”NPT, 1-1/4”NPT, 1-1/2”NPT
Net Weight	3.5kg

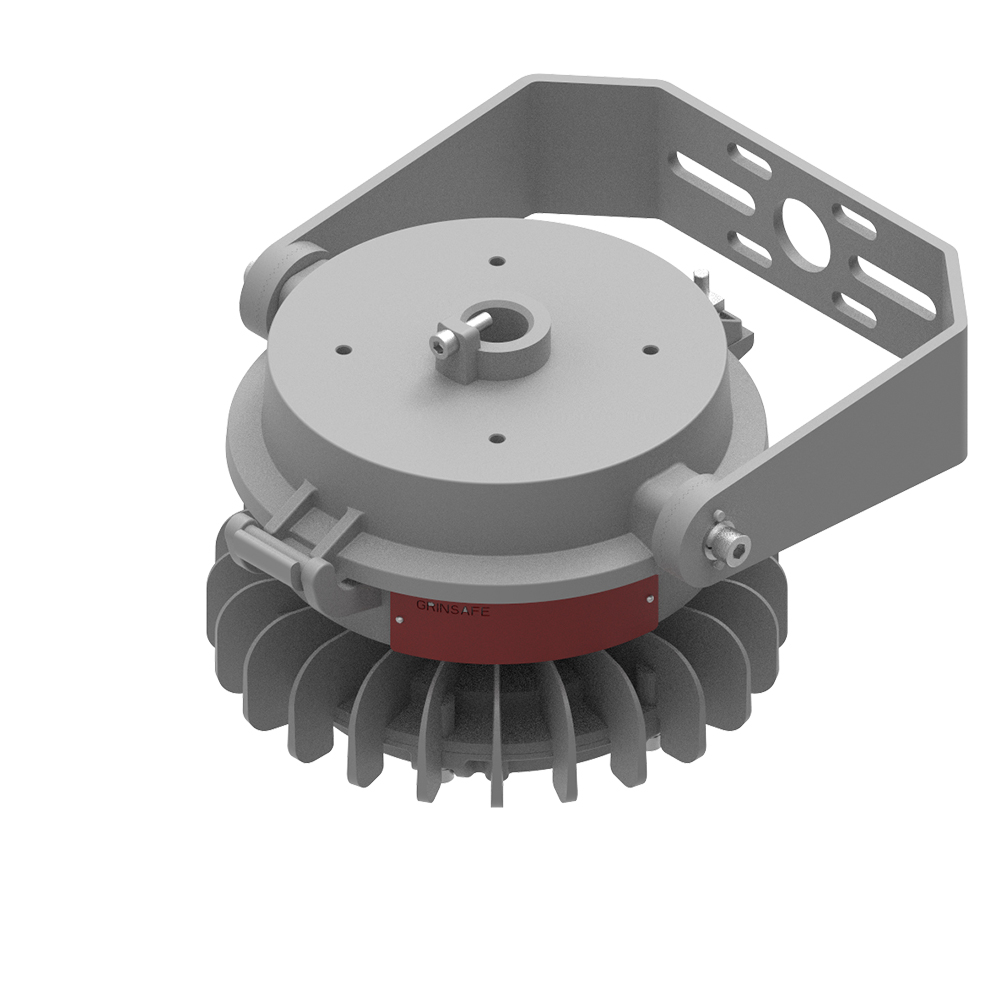

Mounting Options

Pendant Mount

Ceiling Mount

Trunnion Bracket

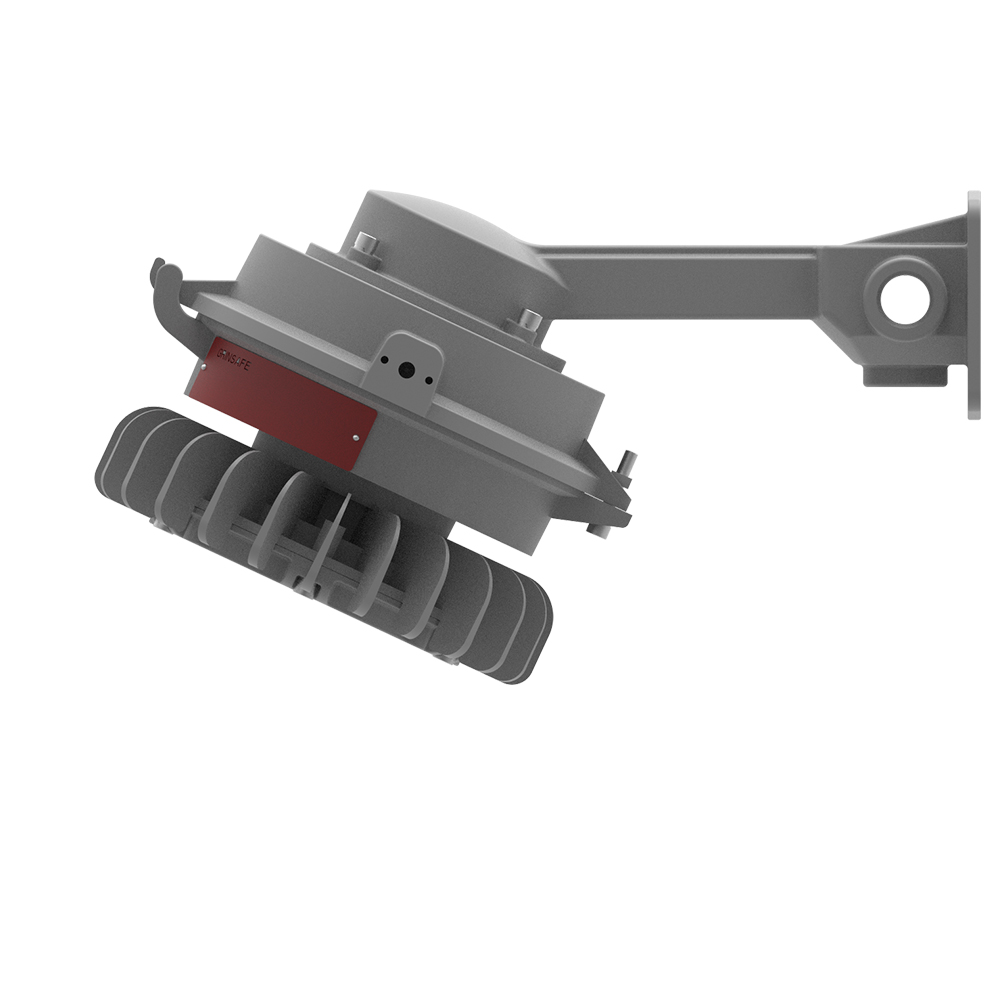

Wall mount 90°

Wall mount 25°

Stanchion mount 90°

Stanchion mount 25°

Document Type	File Name	Updated	Download
Specifications	GHRM_Lance_Series_LED_Hazardous_Location_Light_UL_C1D2_Data_Sheet_EN240227.pdf	2024-03-05	Download
Brochure	GRINSAFE-LANCE-GHRM-LED-Hazardous-Location-Area-Light-Brochure.pdf	2023-11-27	Download

Certifications & compliances

NEC/CEC Standard
UL 844 Hazardous Locations
Class I Division 2, Group A, B, C, D
Class II Division 1, Group E, F, G
Class II Division 2, Group F, G
Class III
Class I, Zone 2, Group IIC
Zone 21, Zone 22

UL 1598 Wet Locations
UL 1598A Marine Outside Type (Salt Water)
UL 8750 LED Safety
CSA C22.2 No.137-M1981
CSA C22.2 No. 250.0

Additional Features

Universal Voltage: AC120-277, 347-480V (50/60Hz)
High efficacy up to 170lm/W,
3 different optics :T1 / T3 / 110°
CCT Adjustable (3000K/ 4000K /5000K)
Wildlife Friendly Amber color options
10kV surge protector is standard, 20kV is optional
Dimming: Standard 1 – 10VDC
Ambient temperatures -40°C to +65°C
IP67 / IK09 / 5G / NEMA 4X
Resistant up to 2,000 PSI of hose directed water
Tested 1000hrs salt spray to standard ASTM”B117-11”
Lumen Maintenance 150,000hours @L70
5-year limited system warranty

Standard Materials

Lamp housing, Splice box, and adapter – die cast copper-free aluminum
Finish – baked Powder epoxy/polyester
Lens – heat, shock and impact resistant glasses or pc lens
Gaskets – high temperature resistant silicone
Hardware – stainless steel
Lacquer-free nameplate
