LED Hazardous Location Emergency Back-up Highbay Light GHRL

CID2
CIID1
CIID2
CIII

Cannon series lighting is designed for petro-chemical, oil and gas (including offshore), mining, metal processing and other environments with flammable and ignitable elements. Reliable and long-lifetime LiFePO4 battery providing 90-minute runtime for emergency applications.

Design Features

Easy installation. Single barrel nut and hinge design, one-hand operation for quick and easy installation
LOW PROFILE. 196mm in height fits perfectly for mounting in confined areas.
High efficacy. Lumens efficacy up to 170Lm/W, reducing energy costs by up to 75% over conventional lamps.
Universal mounting accessories minimizes the SKUs and maximizes the flexibility.
Copper-free aluminum housing and impact resistant lens sealed from the outside environment provides ingress protection against water and dust.
Sensor can be attached on the light to realize the intelligent application.

Part Number Builder

Datasheet

Technical Data

Product Series	GHRL
Rated Power	40W / 60W / 80W / 100W
Input Voltage	AC120-277V
Input Frequency	50/60Hz
Driver Efficiency	≥ 90%
Emergency Power	15W
Emergency Lumen Output	≥ 2,400lm
Rated autonomy	≥ 90 mins
Lumen Output	6,800lm ~ 17,000lm
Luminous Efficacy	170Lm/W
Beam Angle	T1 / T3 / 110°
CCT	Amber / 2700K / 3000K / 4000K / 5000K
CRI	Ra>70
Operating Temperature	0°C ~ +50°C
Lens Material	Glass / PC / Frosted glass drop lens
Mounting Options	Pendant / Ceiling / Wall mount / Stanchion / U-Bracket
Cable Entries	3/4”NPT, 1-1/4”NPT, 1-1/2”NPT
Net Weight	8kg

Mounting Options

Flush Ceiling Mount

Pendant mount

Trunnion Bracket

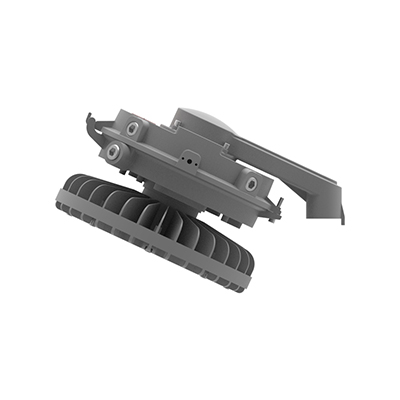

Stanchion mount 25°

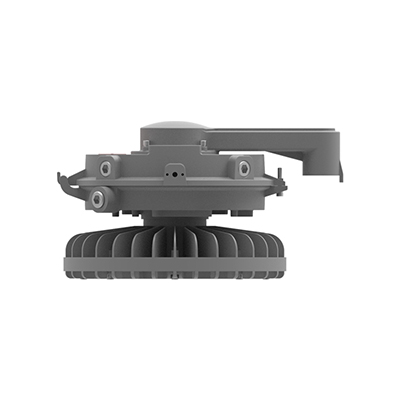

Stanchion mount 90°

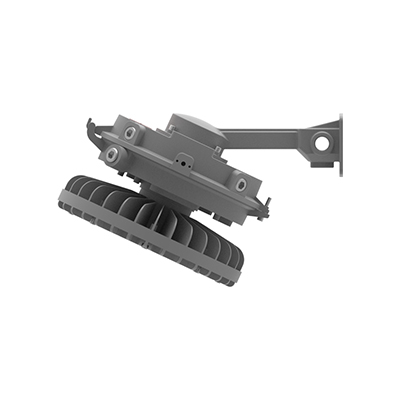

Wall mount 25°

Wall mount 90°

Document	Updated	Download
Cannon™ GHRL Spec Sheet	2024-12-02	Download
Cannon™ GHRL Brochure	2024-12-13	Download

Certifications & compliances

NEC/CEC Standard
UL 844 Hazardous Locations
Class I Division 2, Group A, B, C, D
Class II Division 1, Group E, F, G
Class II Division 2, Group F, G
Class III
Class I, Zone 2, Group IIC
Zone 21, Zone 22

UL 924
UL 1598 Wet Locations
UL 1598A Marine Outside Type (Salt Water)
UL 8750 LED Safety
CSA C22.2 No.137
CSA C22.2 No. 250.0

Additional Features

Universal Voltage: AC120-277V (50/60Hz)
Optional self-testing emergency battery backup.
High efficacy up to 170lm/W,
3 different optics: T1 / T3 / 110°
Wildlife Friendly Amber color options
10kV surge protector is standard, 20kV is optional
Dimming: Standard 1 – 10VDC
Ambient temperatures 0°C to +50°C
IP66/67, NEMA 4X
IK09 / 5G
Resistant up to 2,000 PSI of hose directed water
Tested 1000hrs salt spray to standard ASTM”B117-11”
Lumen Maintenance L70>150,000hours @ 25°C
5-year limited system warranty

Standard Materials

Lamp housing, Splice box, and adapter – die cast copper-free aluminum
Finish – baked Powder epoxy/polyester
Lens – heat, shock and impact resistant glasses or pc lens
Gaskets – high temperature resistant silicone
Hardware – stainless steel
Lacquer-free nameplate
