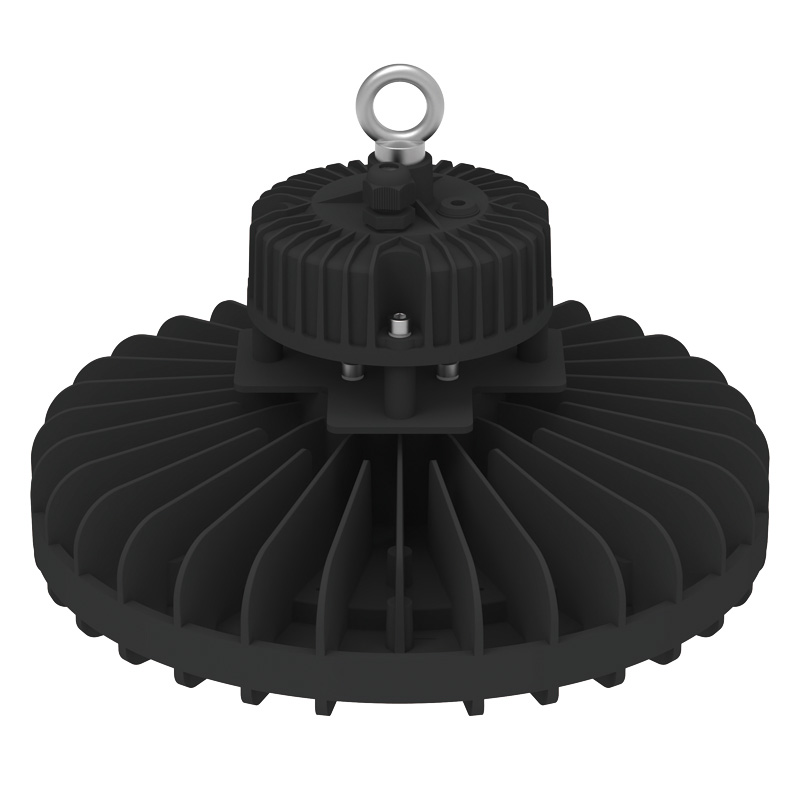

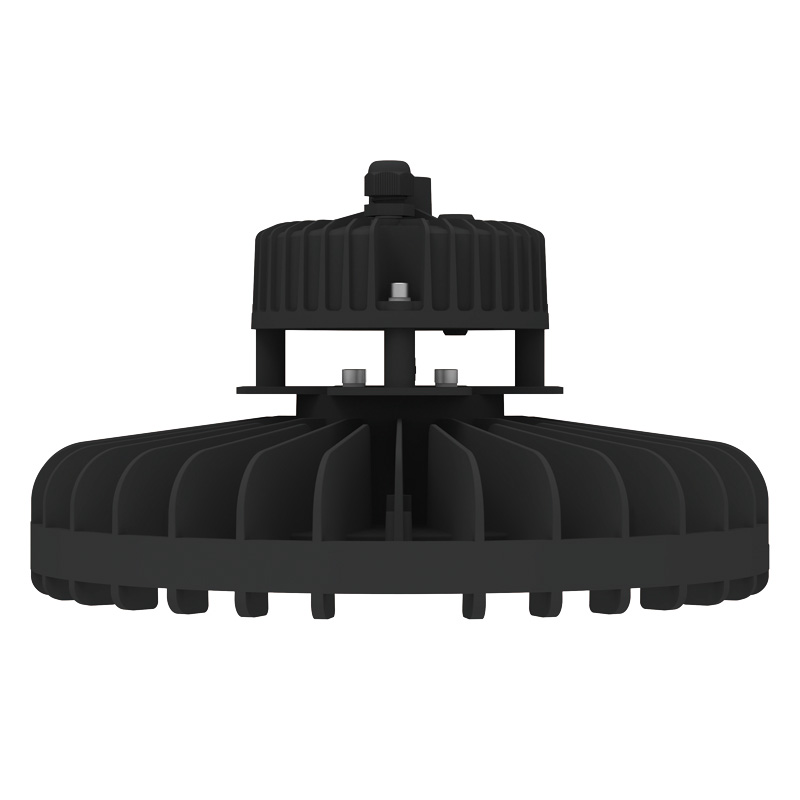

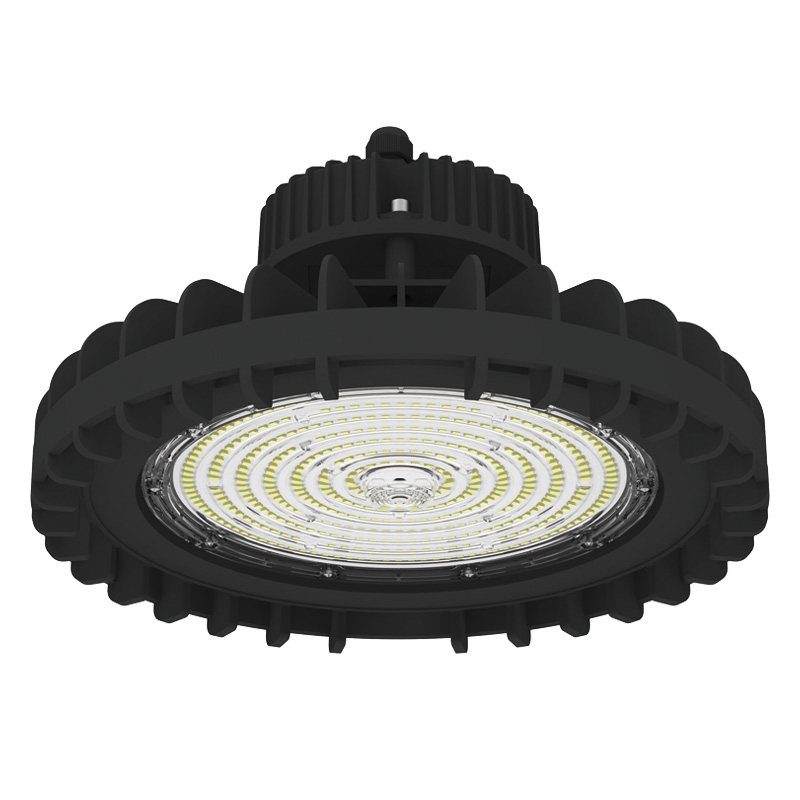

LED High Bay Light Corrosion & Impact Resistant ORBIT GSO

Up to 38,400lm, GSO is specially designed for different applications from harsh environment conditions to ordinary industrial workshops such as warehouse, industrial workplace, mining, food processing, marine, wastewater treatment, heavy manufacturing and general wash down areas.

Design Features

  • Wattage ranges from 80W to 240W lumen output up to 40,800lm.
  • High Efficacy Lumens efficacy up to 170Lm/W, reducing energy costs by up to 70% over conventional lamps.
  • Electrophoretic Coating, corrosion resistance such as salt spray, acid, and alkali resistance.
  • Optics 60°, 90°, 120°, different lens provides more choices for various scenarios.
  • Impact-resistant pc lens, impact protection up to IK10.
Part Number Builder

Datasheet

  • Technical Data

  • Mounting Options

  • Downloads

Technical Data

Product Series GSO
Rated Power 80W / 100W / 150W / 200W / 240W
Input Voltage AC100 – 277V
Input Frequency 50/60Hz
Driver Efficiency ≥  90%
Lumen Output 13,600 ~ 40,800lm
Luminous Efficacy 170Lm/W
Beam Angle 60° / 90° / 120°
CCT 2700K / 3000K / 4000K / 5000K
CRI Ra>70
Operating Temperature -40°C~+60°C
Lens Material Glass / PC
Mounting Options Hanging / U-bracket
Net Weight 4.3kg

Mounting Options

Hanging Mount
Hanging Mount

Document Updated Download
ORBIT™ GSO Spec Sheet 2024-10-08
Download
ORBIT™ GSO Brochure 2024-10-08
Download

Certifications & compliances

CE
UL 1598 Wet Locations
UL 8750 LED Safety
IP67
IK10

Additional Features

  • Universal Voltage: AC120-277V (50/60Hz)
  • High efficacy up to 170lm/W
  • 3 different optics: 60° / 90° / 120°
  • Dimming: Standard 1 – 10VDC
  • Ambient temperatures -40°C to +60°C
  • IP67 / IK10 / NEMA 4X
  • Resistant up to 2,000 PSI of hose directed water
  • Tested 1000hrs salt spray to standard ASTM”B117-11”
  • Lumen Maintenance 150,000hours @L70
  • 5-year limited system warranty

Standard Materials

  • Lamp housing, Splice box – die cast aluminum
  • Finish – baked Powder epoxy/polyester
  • Lens – Impact resistant PC or Glass lens
  • Gaskets – high temperature resistant silicone
  • Hardware – stainless steel

PART NUMBER BUILDER

Power
Voltage
Optics
Color Temperature
Lens
Mount Style
Color
Accessories
