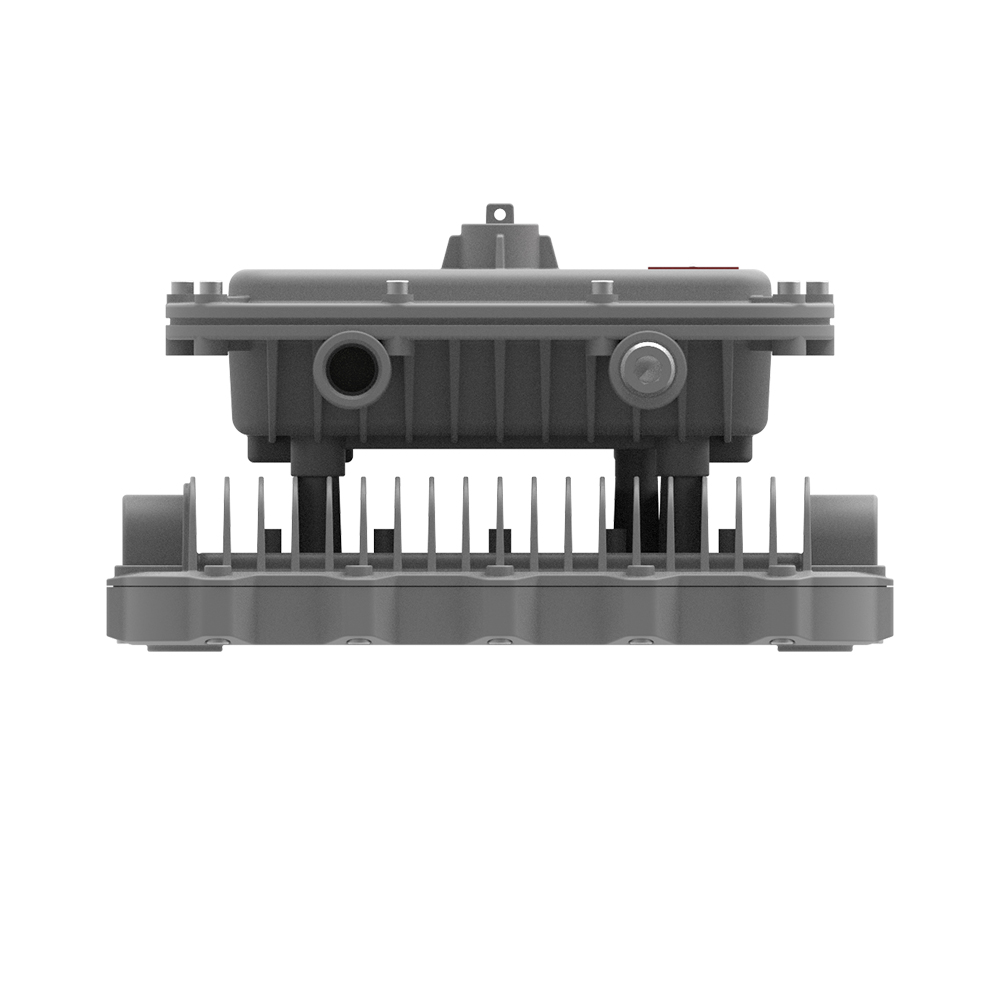

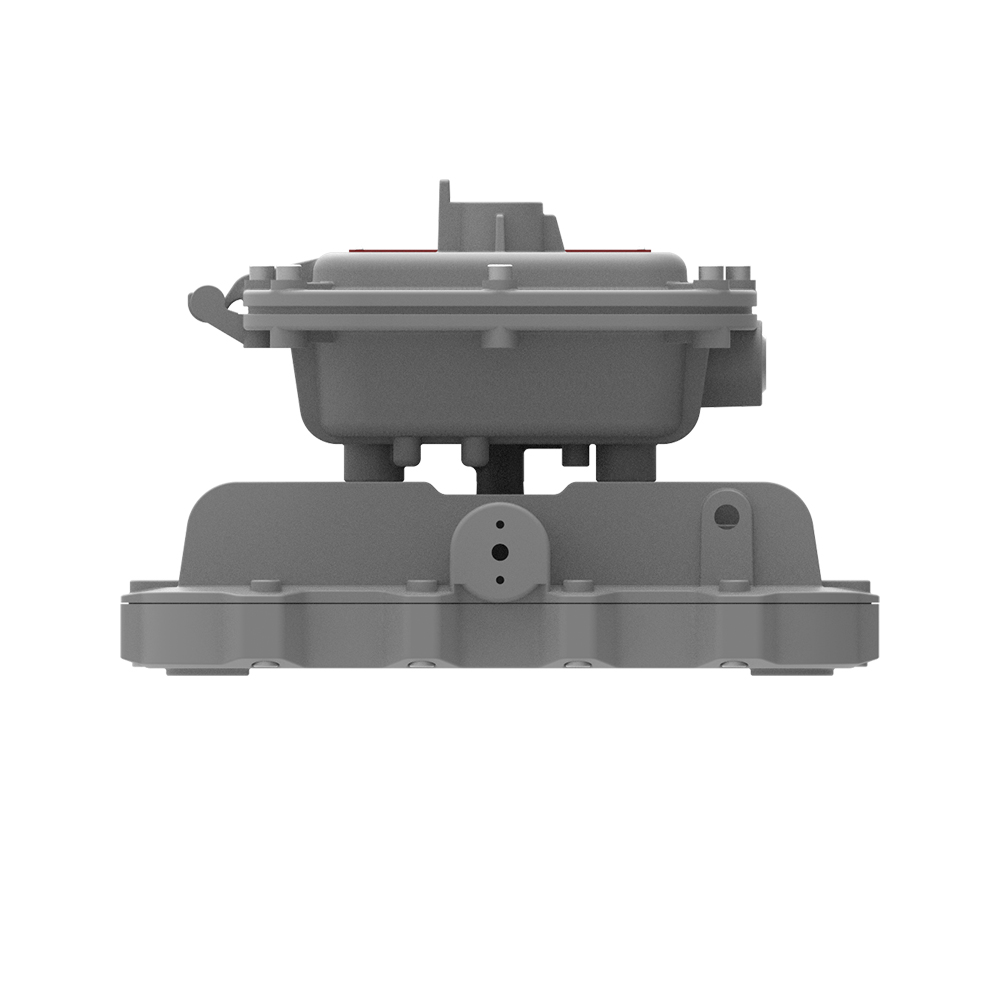

LED Explosion Proof High Bay Light UL C1D1 SCOUT GHSL

  • CID1
  • CID2
  • CIID1
  • CIID2
  • CIII

Scout GHSL LED lamps are certified for use in NEC, CEC hazardous locations. With its extremely versatile for harsh and hazardous location, the LED lamps are a brand new class of energy saving, robust, ultra durable , and easy installation luminaires Class I and Class II hazardous area high bay and flood light.

Design Features

  • Optimized design, 11.5 kg ONLY, balanced well in weight, safety and durability.
  • Hinge design makes the installation easier and safer.
  • High efficacy LEDs, up to 160lm/w, maintains the same light intensity with less power consumption against the conventional lamps.
  • Multiple beam angles provide more choices for various scenarios.

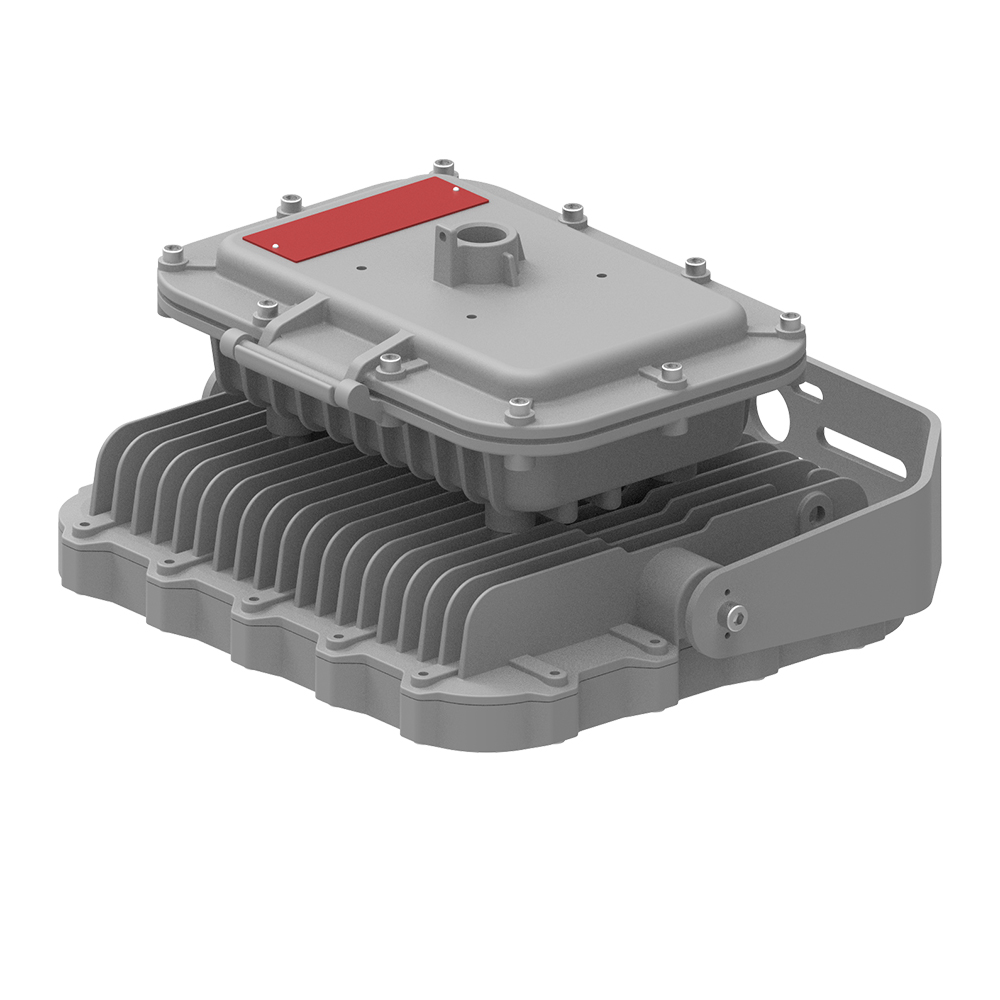

  • 360° Adjustable U-Bracket corrosion, vibration, impact and shock resistant, passed 5G, 3-axis vibration test.
  • Universal mounting accessories for easy retrofitting.
  • Terminal blocks fitted as standard for faster installation.
Part Number Builder

Datasheet

  • Technical Data

  • Mounting Options

  • Downloads

Technical Data

Product Series GHSL
Rated Power 80W / 100W / 150W / 200W
Input Voltage AC100-277V, 347-480V
Input Frequency 50/60Hz
Driver Efficiency ≥  90%
Lumen Output 12,800lm ~ 32,000lm
Luminous Efficacy 160~170Lm/W
Beam Angle 30°/60°/90°/110°/T2/T3/T4
CCT Amber / 2700K / 3000K / 4000K / 5000K
CRI Ra>70
Ambient Operating Temperature -40°C~+65°C (80W 100W 150W )
-40°C~+60°C (200W )
Lens Material Glass
Mounting Options Pendant / Ceiling / Wall mount / Stanchion / U-Bracket
Cable Entries 3/4”NPT, 1-1/4”NPT, 1-1/2”NPT
Net Weight 11.5kg

Mounting Options

Pendant Mount
Pendant Mount

Pendant Mount 3/4" NPT A356

Trunnion Bracket
Trunnion Bracket

Trunnion Bracket 3/4" NPT A356

Wall mount 90°
Wall mount 90°

Wall mount 90° 3/4" NPT A356

Wall mount 25°
Wall mount 25°

Wall mount 25° 3/4" NPT A356

Stanchion mount 90°
Stanchion mount 90°

S90B Stanchion mount 90°, 1-1/2“NPT, 1-1/4“NPT

Stanchion mount 25°
Stanchion mount 25°

S90B Stanchion mount 25°, 1-1/2“NPT, 1-1/4“NPT

Ceiling mont
Ceiling mont

Ceiling junction Box 3/4“NPT

Document Updated Download
Scout™ GHSL Spec Sheet 2024-10-08
Download
Scout™ GHSL Brochure 2024-10-08
Download
Scout™ GHSL Installation Manuals 2023-04-13
Download

Certifications & compliances

NEC/CEC Standard
UL 844 Hazardous Locations
Class I Division 1, Group C, D
Class I Division 2, Group A, B, C, D
Class II Division 1, Group E，F, G
Class II Division 2, Group F, G
Class III
Class I, Zone 1, Group IIB
Class I, Zone 2, Group IIC
Zone 21, Zone 22

UL 1598 Wet Locations
UL 1598A Marine Outside Type (Salt Water)
UL 8750 LED Safety
Paint Spray Booth
CSA C22.2 No.137
CSA C22.2 NO. 250.0

Additional Features

  • Universal Voltage: AC120-277, 347-480V (50/60Hz)
  • High efficacy up to 170lm/W, Up to 32,000lm
  • 7 different optics: 30° / 60° / 90° / 110° / T2 / T3 / T4
  • CCT Adjustable (3000K/ 4000K /5000K)
  • Wildlife Friendly Amber color options
  • 10kV surge protector is standard, 20kV is optional
  • Dimming: Standard 1 – 10VDC
  • Ambient temperatures -40°C to +65°C
  • IP66/67 | IK09 | 5G | NEMA 4X
  • Resistant up to 2,000 PSI of hose directed water
  • Tested 1000hrs salt spray to standard ASTM”B117-11”
  • Lumen Maintenance L70>150,000hours @ 25°C
  • 5-year limited system warranty
  • Harsh & Hazardous Duty

Standard Materials

  • Lamp housing, Splice box, and adapter – die cast copper-free aluminum
  • Finish – baked Powder epoxy/polyester
  • Lens – heat, shock and impact resistant clear or diffuse glass lens
  • Gaskets – high temperature resistant silicone
  • Hardware – stainless steel
  • Lacquer-free nameplate
